NOCK CORTEX CB 519 / CB 619 / CB 719 CONVEYORISED DERINDING

Enquire Now

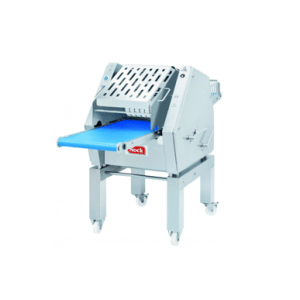

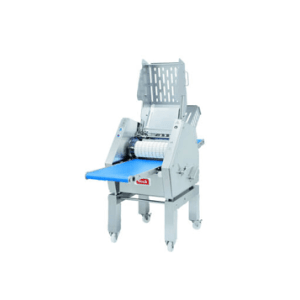

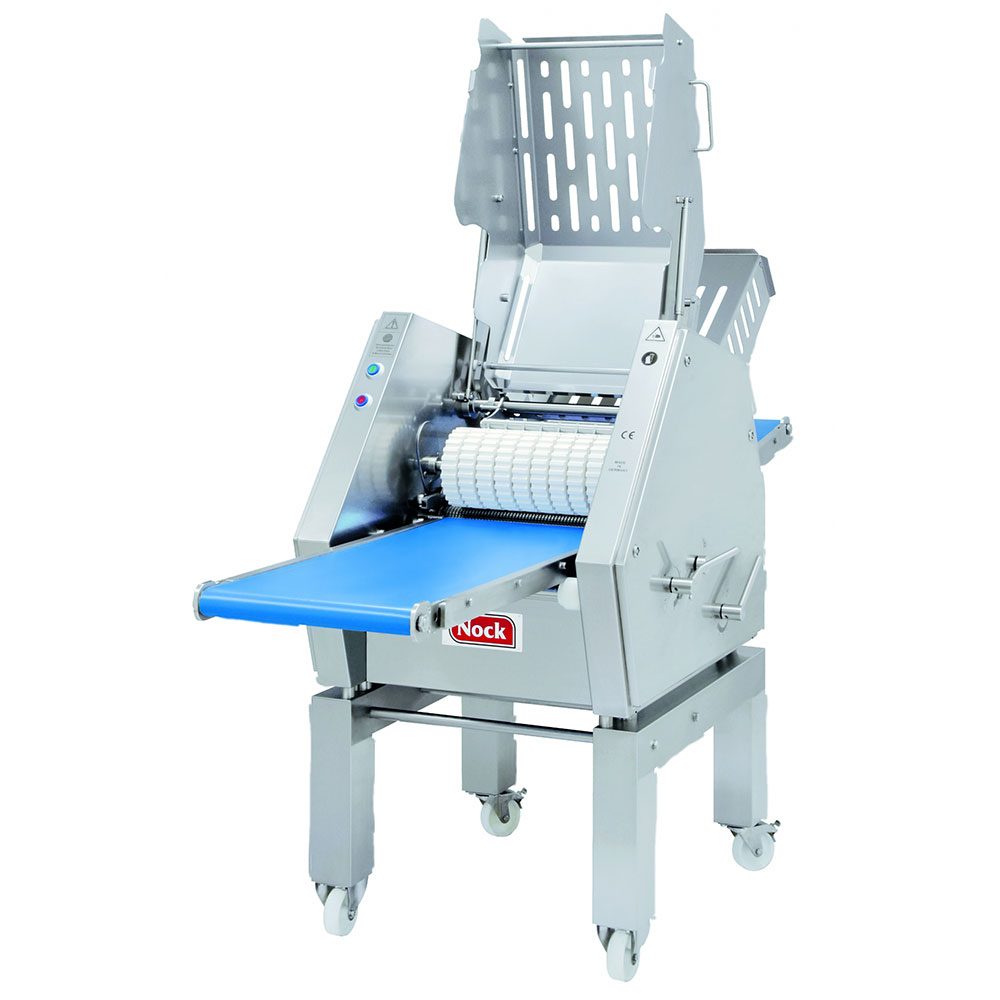

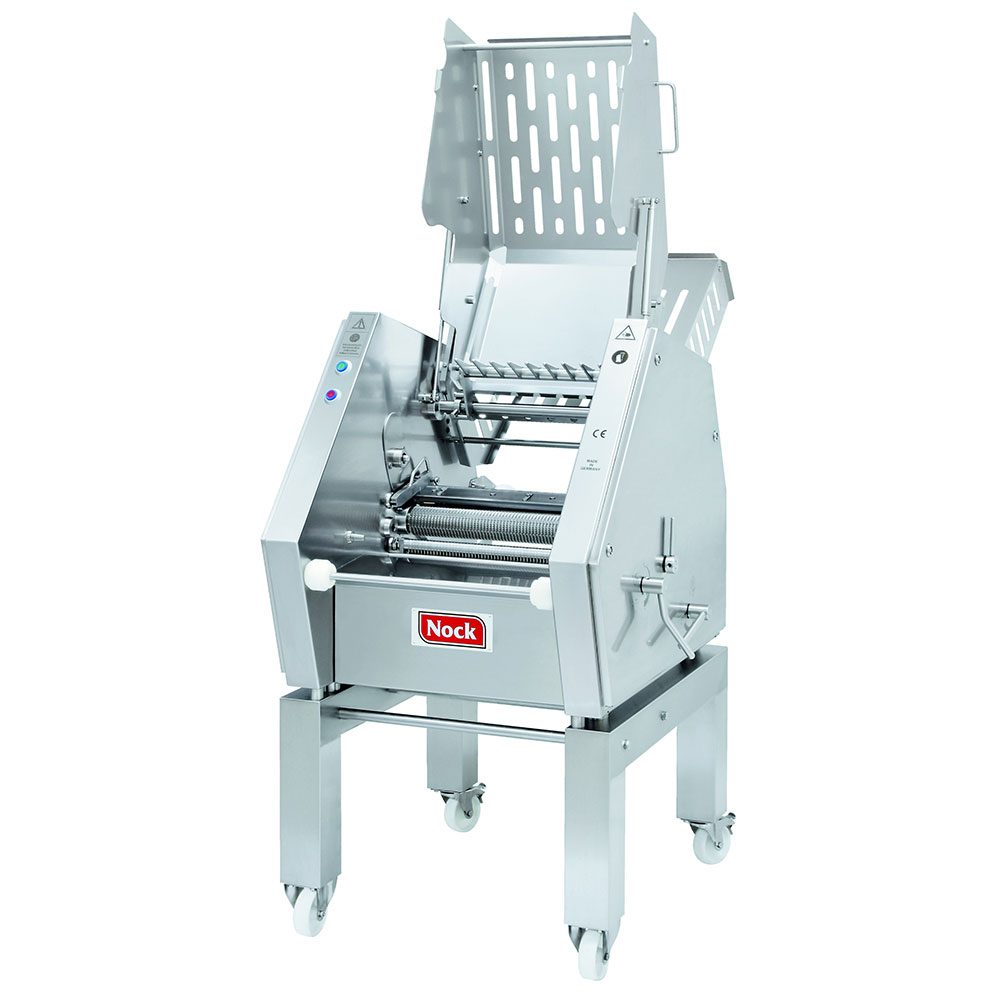

NOCK CORTEX CB 519 / CB 619 / CB 719 CONVEYORISED DERINDING

Meat derinding machine with further developed geometry of the pressure system with dynamic adaption for variably high products.

STANDARD EQUIPMENT
  • infeed conveyor
  • discharge conveyor
  • compact casing (new design) with sloping tops and underframe open on all four sides
  • blade gap infinitely adjustable
  • NEW: The blade holders are designed for blades with dimensions: 518/618/718 x 22 x 0.7 mm
  • NEW: Fastening of the blade from above with screws, for fast and safe blade change
  • NEW: The blade holder can remain in the machine for cleaning and is adjustable upwards for this puprose, so that thorough cleaning is possible
  • spring suspended blade holder for perfect derinding results
  • Newly developed geometry of the pressure system and spring identification for dynamic adaption to variously high pieces; preadjustment of height

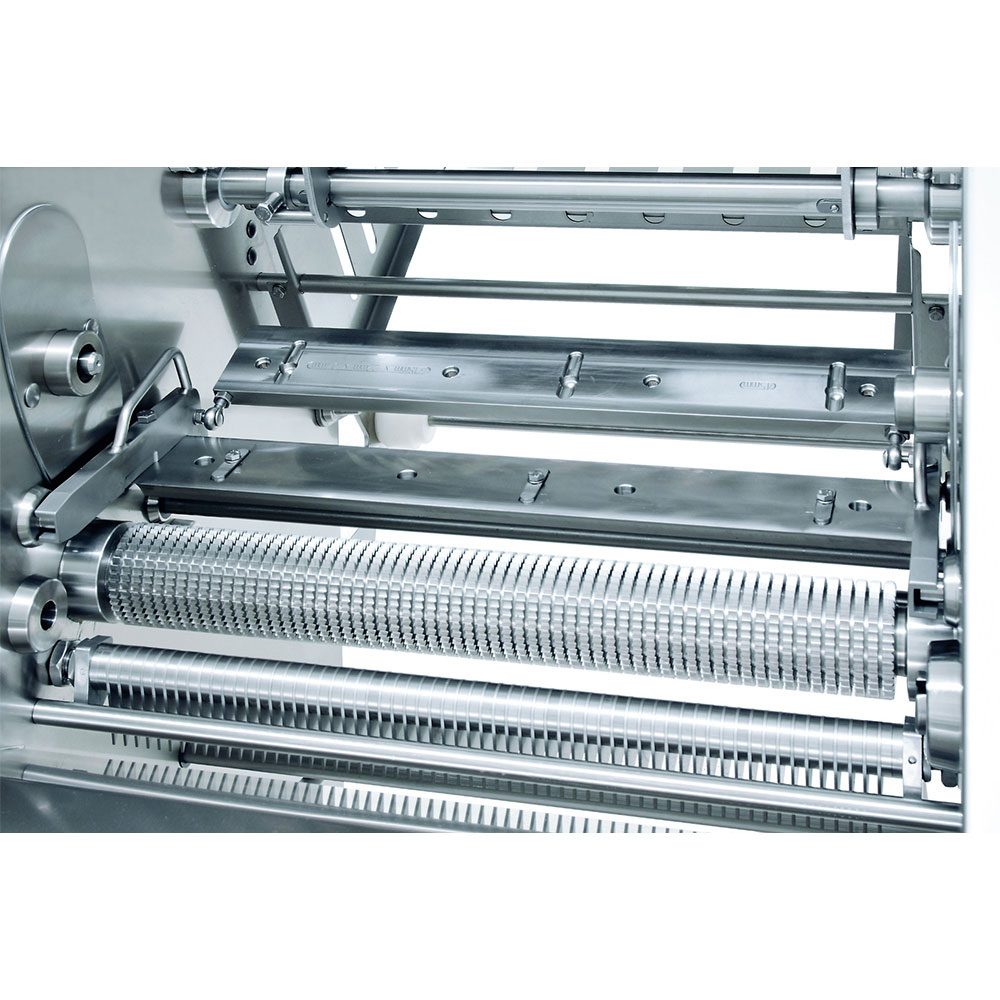

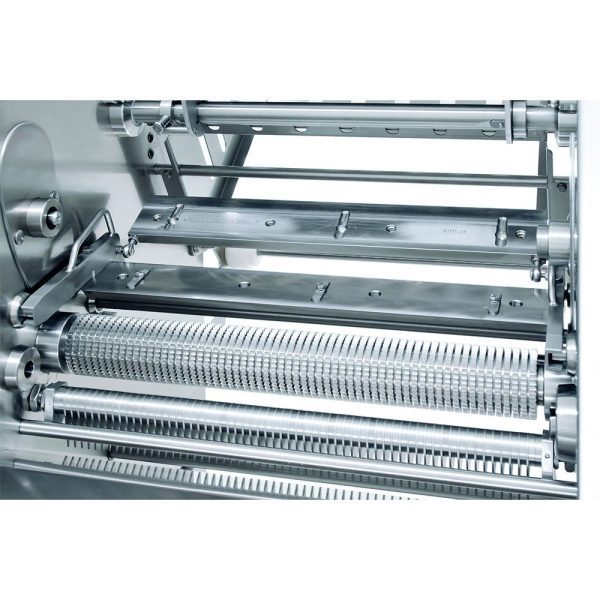

  • NEW: New geometry of the pressure roller, toothroller with scraper comb
  • NEW: Scraper comb for transport roller can be operated from the outside
  • NOCK POWER PLATES® for outstanding robustness, service friendliness, smooth and easy to clean surfaces
  • NEW: Access protection from the front and from behind due to NOCK EASY-FLOW® safety covers
  • conveyors can be removed within seconds without any tools
  • lockable castors
  • stainless steel
  • stainless steel bearings
OPTIONS
  • discharge conveyor for removed skin
  • lateral discharge conveyor for removed skin with separate drive
  • suspended version with plant specific adaption
  • plastic modular belts
  • inflated pressure balloon
  • transfer plate for passage without processing
  • NOCK ACTIVE SKIN GRIPPER® for best quality rind and protection of the pressure wheels with perfect first cut
  • NEW: Cleaning trolley for storage and cleaning of dismountable parts like: conveyors, belts, pressure roller and blade holder

Model Options: CB 519, CB619, CB719

SKU: NOCK2-CDR Categories: , ,
