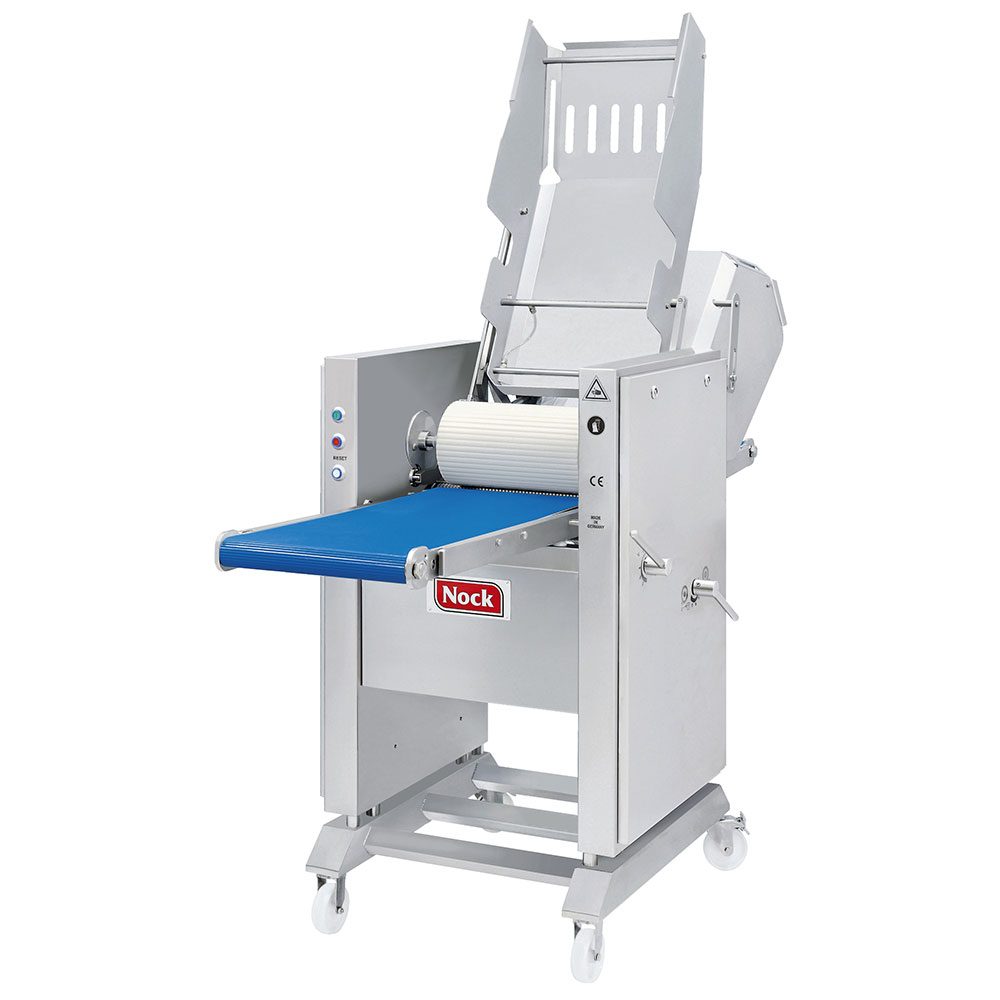

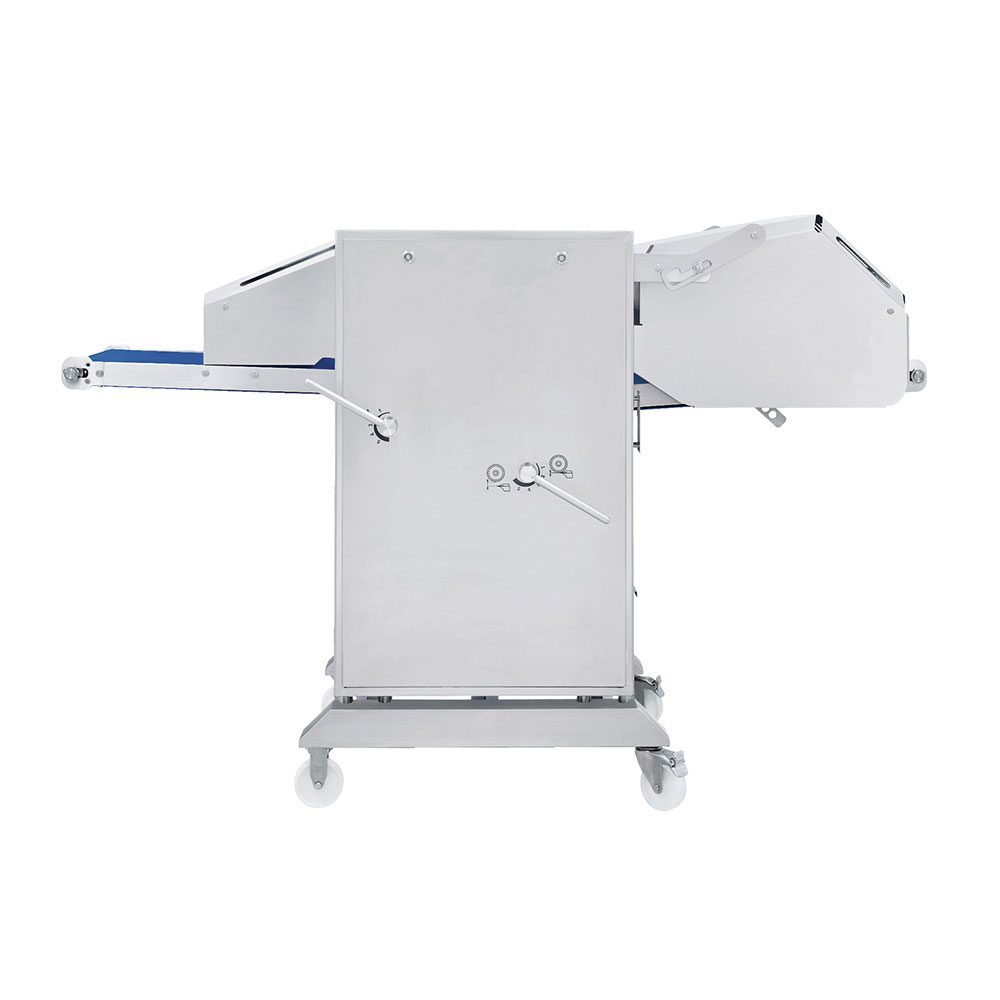

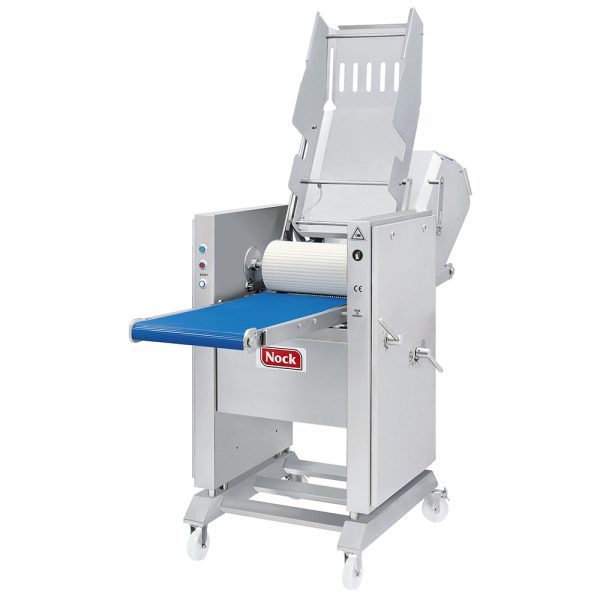

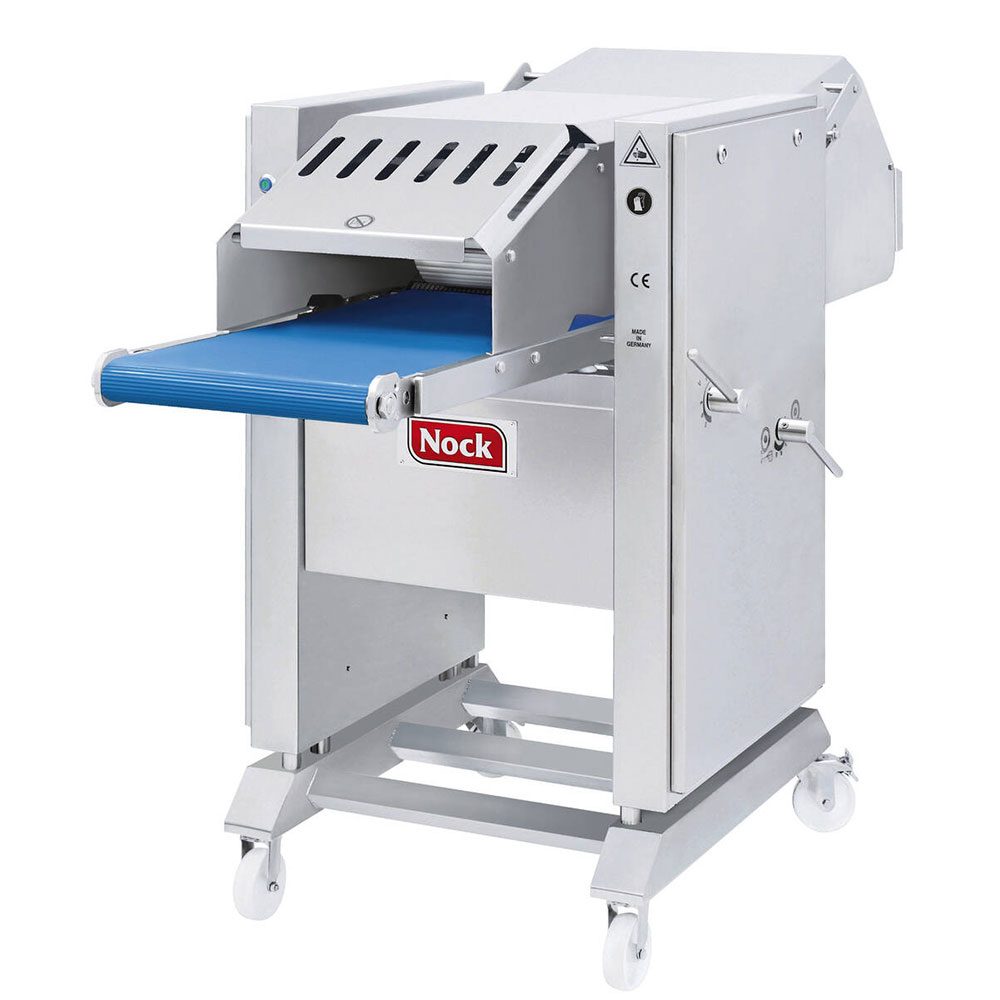

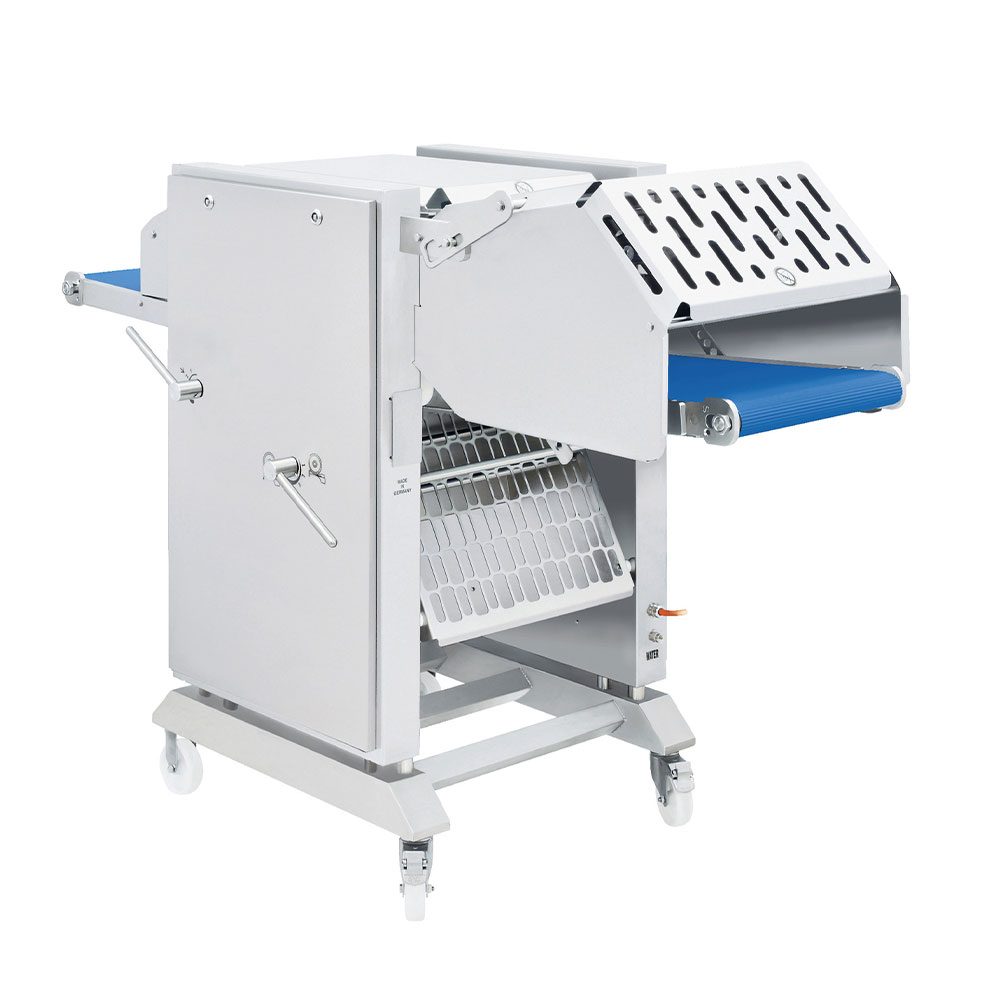

Nock Cortex CBF 496 Fish Skinning Machine

The Nock Cortex CBF 496 Fish Skinning Machine is an innovative solution for efficient fish processing featuring cutting-edge CF Technology. This automatic fish skinner is designed for universal application, making it ideal for a wide range of fish species. The unique scraper comb fits perfectly in the grooves of the tooth roller, ensuring effective cleaning during operation.

Enhanced by an economical water cleaning unit, the Nock Cortex guarantees continuous, reliable performance. Notably, when skinning smoked fish, the water cleaning unit can be bypassed, showcasing its versatility. Whether you’re working with thick-skinned fish like salmon trout or flatfish such as plaice and sole, this machine offers exceptional skinning results. The Nock Cortex CBF 496 Fish Skinning Machine boasts three methods of skinning: deep skinning with a sharp blade, thin skinning for delicate fillets, and silver skinning using a blunt blade.



SKU: NOCK-CBF496 Categories: , ,

Description

With a cutting width of 430 mm and a cutting speed of 31 m/min, it’s engineered for efficiency. Features such as an infinitely adjustable blade gap, spring-suspended blade holder, and special hard pressure roller enhance skinning precision. The machine’s infeed and discharge conveyors can be effortlessly removed without tools, promoting easy maintenance. Constructed from stainless steel with NOCK POWER PLATES® for robustness and NOCK EASY-FLOW® safety covers for improved hygiene, it ensures a safe and smooth operation in any processing environment.

  • Cutting width: 430mm
  • Cutting speed: 31 m/min
  • Max. throughput height: 70mm
  • Blade gap: 0 – 8 mm, infinitely adjustable
  • Apply length on infeed conveyor: 400mm
  • Infeed conveyor (1): 850 x 425mm
  • Discharge conveyor (1): 850 x 425mm
  • Discharge conveyor for removed skin (1): 650 x 425mm
  • Overall dimension W x H x D: 800 x 1190 x 1860mm
  • Weight: 250kg
  • Motor performance: 0.75 kW
  • Electrical connection: 3 AC – 400 V – 50 Hz, IEC 60309 16 A 6h, other voltages upon request
  • Water connection: G 1/4 internal thread
  • Water consumption: approx. 200 l/h
  • Compressed air: not required

Additional Information

Brand

Application

Height

1190mm

Width

800mm

Depth

1860mm

Video
