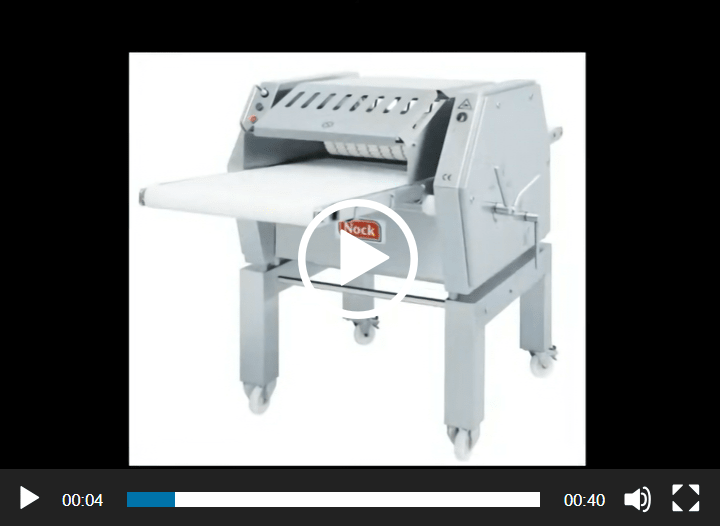

NOCK CORTEX DERINDING CB504 / CB604 / CB704

Conveyorized, for lamb back straps. Fantastic machine used for either hot or chilled products. Used in the hotel and restaurant/food service industries for bonded eye fillets.

FEATURES AND APPLICATION RANGE

cutting width: 500 / 600 / 700 mm
cutting speed: 29 m/min
features:
  • available as mobile model with accessibility for skin removal from the sides
  • or as suspended version with plant specific adaptation.
application: perfect derinding of flat and high pieces such as belly, back fat, rind cut to size, partial cuts, shoulder etc.

STANDARD EQUIPMENT

  • infeed conveyor
  • discharge conveyor
  • compact casing with underframe open on all four sides
  • blade gap infinitely adjustable
  • spring suspended blade holder for perfect derinding results
  • spring suspended pressure roller, additionally continuously variable in height
  • tooth roller with scraper comb
  • NOCK POWER PLATES® for outstanding robustness, service friendliness and smooth and easy to clean surfaces
  • NOCK EASY-FLOW® safety covers for reliable product flow and better hygiene during processing
  • NEW: Protective cover in the machine outlet for increased safety at work
  • conveyors can be removed within seconds without any tools
  • lockable castors
  • stainless steel
  • stainless steel bearings

OPTIONS

  • suspended version with plant specific adaptation
  • discharge conveyor for removed skin
  • lateral discharge conveyor for removed skin with separate drive
  • plastic modular belts
  • inflated pressure balloon
  • transfer plate for passage without processin
  • NOCK ACTIVE SKIN GRIPPER® (ASG) for higher yield, best quality of the rind and protection of the pressure wheels with perfect first cut
  • Cleaning trolley for storage and cleaning of dismountable parts like: conveyors, belts, pressure roller and blade holder

TECHNICAL DATA

Cortex CB 504 Cortex CB 604 Cortex CB 704
cutting width (mm) 500 600 700
cutting speed (m/min) 29 29 29
maximum throughput height (mm) 120 120 120
blade gap (mm) 0 – 5 0 – 5 0 – 5
apply length on infeed conveyor (mm) 520 520 520
infeed conveyor (mm) (1) 1070 x 490 1070 x 590 1070 x 690
discharge conveyor (mm) (1) 1070 x 490 1070 x 590 1070 x 690
discharge conveyor for removed skin (mm) (1) 850 x 490 850 x 590 850 x 690
overall dimension W x H x D (mm) 865 x 1220 x 2280 965 x 1220 x 2280 1065 x 1220 x 2280
weight (kg) 280 300 320
motor performance (kW) 1.1 1.1 1.1
electrical connection 3 L – PE – 400 V – 50 Hz
IEC 60309 16 A 6h (plug)
other voltages upon request		 3 L – PE – 400 V – 50 Hz
IEC 60309 16 A 6h (plug)
other voltages upon request		 3 L – PE – 400 V – 50 Hz
IEC 60309 16 A 6h (plug)
other voltages upon request
compressed air not required not required not required

(1) external dimension of the conveyor frame
