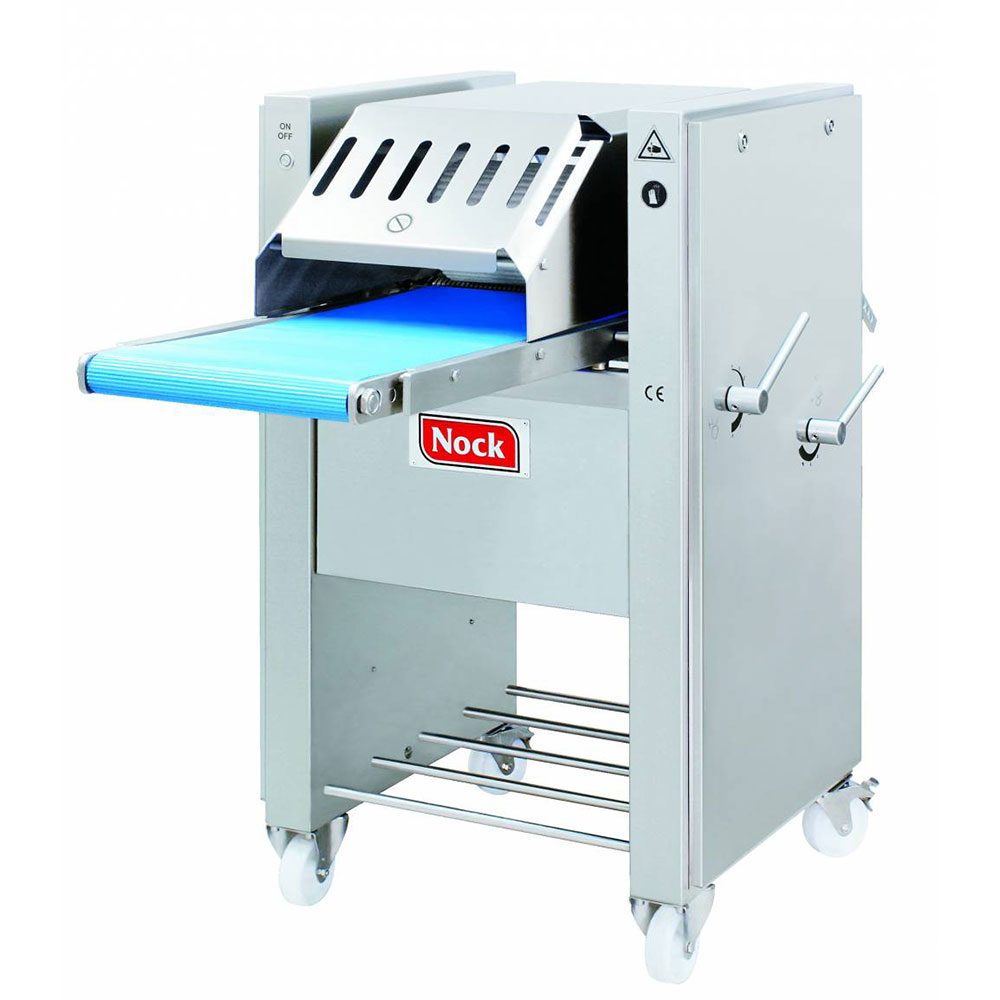

Nock Skinex SB 496 Fish Skinning Machine

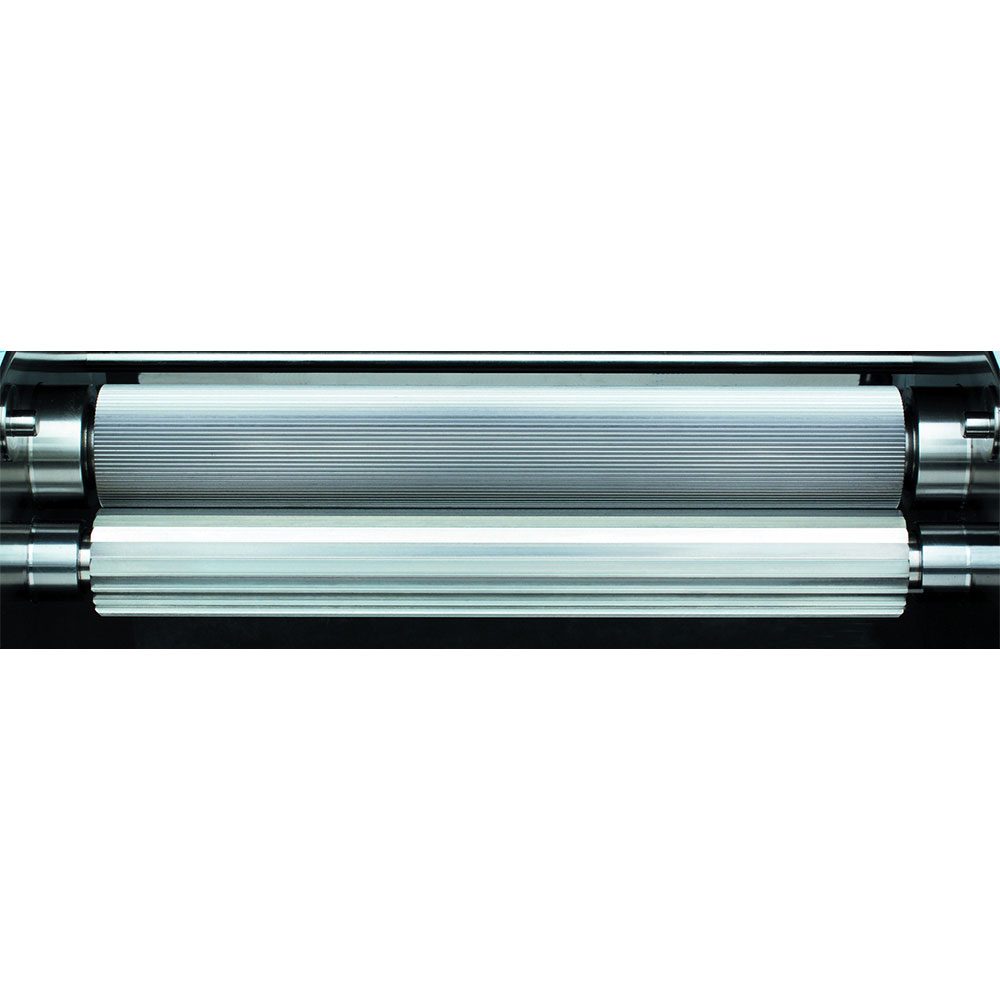

Introducing the Skinex SB 496 fish skinning machine, an advanced automatic machine designed with S technology for low-loss fish skinning. This innovative model features a transport roller with fine toothing and a dynamic cleaning roller made of stainless steel, ensuring efficient operation. While it offers exceptional performance for skinning fish like tilapia, pangasius, trout, cod, catfish, and squid, the S technology optimises yield by utilising both sharp and blunt blades during the skinning process. Notably, when processing smoked fish, the water cleaning unit is not required, allowing for seamless operation.





SKU: NOCK-SB496-SKINNER Categories: , ,

Description

The Skinex SB 496 is equipped with a cutting width of 430mm and a cutting speed of 31 m/min, featuring three skinning methods: deep skinning with a sharp blade, thin skinning with a sharp blade, and silver skinning with a blunt blade. Standard equipment includes infeed and discharge conveyors that can be easily removed without tools, along with a blade gap that is infinitely adjustable for tailored skinning results. Built with durability in mind, the machine incorporates NOCK POWER PLATES® for easy cleaning and a robust design, as well as NOCK EASY-FLOW® safety covers that enhance hygiene during processing. Safety features, such as a protective cover at the outlet and lockable castors, ensure a safe working environment while maintaining high productivity.

  • Cutting width: 430mm
  • Cutting speed: 31 m/min
  • Max. throughput height: 70mm
  • Blade gap: 0 – 4mm, infinitely adjustable
  • Apply length on infeed conveyor: 400mm
  • Infeed conveyor (1): 850 x 425mm
  • Discharge conveyor (1): 850 x 425mm
  • Overall dimension W x H x D: 800 x 1190 x 1860mm
  • Weight: 240kg
  • Motor performance: 0.75 kW
  • Electrical connection: 3 AC – 400 V – 50 Hz, IEC 60309 16 A 6h, other voltages upon request
  • Water connection: G 1/4 internal thread
  • Water consumption: approx. 200 l/h
  • Compressed air: not required

Additional Information

Brand

Application

Height

1190mm

Width

800mm

Depth

1860mm
