Description
NOCK CB 503 DERINDER NOCK15

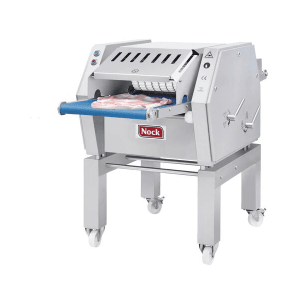

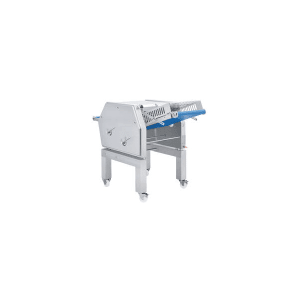

Nock Cortex CB 503 Derinder
The Nock Cortex CB 503 Derinder features high cutting speed conveyors, ideal for large and medium-sized meat processing plants. With a cutting width of 500mm and a speed of 29m/min, it offers exceptional versatility.
Available as a mobile model for easy accessibility or a suspended version tailored to plant specifications, they’re compact and economical. Perfect for derinding various cuts like belly, back fat, and shoulder, they come with standard infeed and discharge conveyors, adjustable blade gap, and spring-suspended blade holder for optimal results.
Optional features include discharge conveyors for removed skin, plastic modular belts, and NOCK ACTIVE SKIN GRIPPER® for higher yield and quality. Technical specifications include a cutting width of 500mm, cutting speed of 29m/min, and a maximum throughput height of 120mm, ensuring efficiency and precision.
- infeed conveyor
- discharge conveyor
- compact casing with underframe open on all four sides
- blade gap infinitely adjustable
- spring suspended pressure roller, additionally continuously variable in height
- tooth roller with scraper comb
- conveyors can be removed within seconds without any tools
- stainless steel
TECHNICAL DATA
| Cortex CB 503 | |
|---|---|
| cutting width | 500 mm |
| cutting speed | 29 m/min |
| maximum throughput height | 120 mm |
| blade gap | 0 – 5 mm |
| apply length on infeed conveyor | 300 mm |
| infeed conveyor (1) | 850 x 490 mm |
| discharge conveyor (1) | 850 x 490 mm |
| discharge conveyor for removed skin (1) | 650 x 490 mm |
| overall dimension W x H x D | 865 x 1190 x 1860 mm |
| weight | 265 kg |
| motor performance | 1.1 kW |
| electrical connection | 3 L – PE – 400 V – 50 Hz IEC 60309 16 A 6h (plug) other voltages upon request |
| compressed air | not required |
(1) external dimension of the conveyor frame
