Nock Cortex CF460 Fish Skinner

Enquire Now

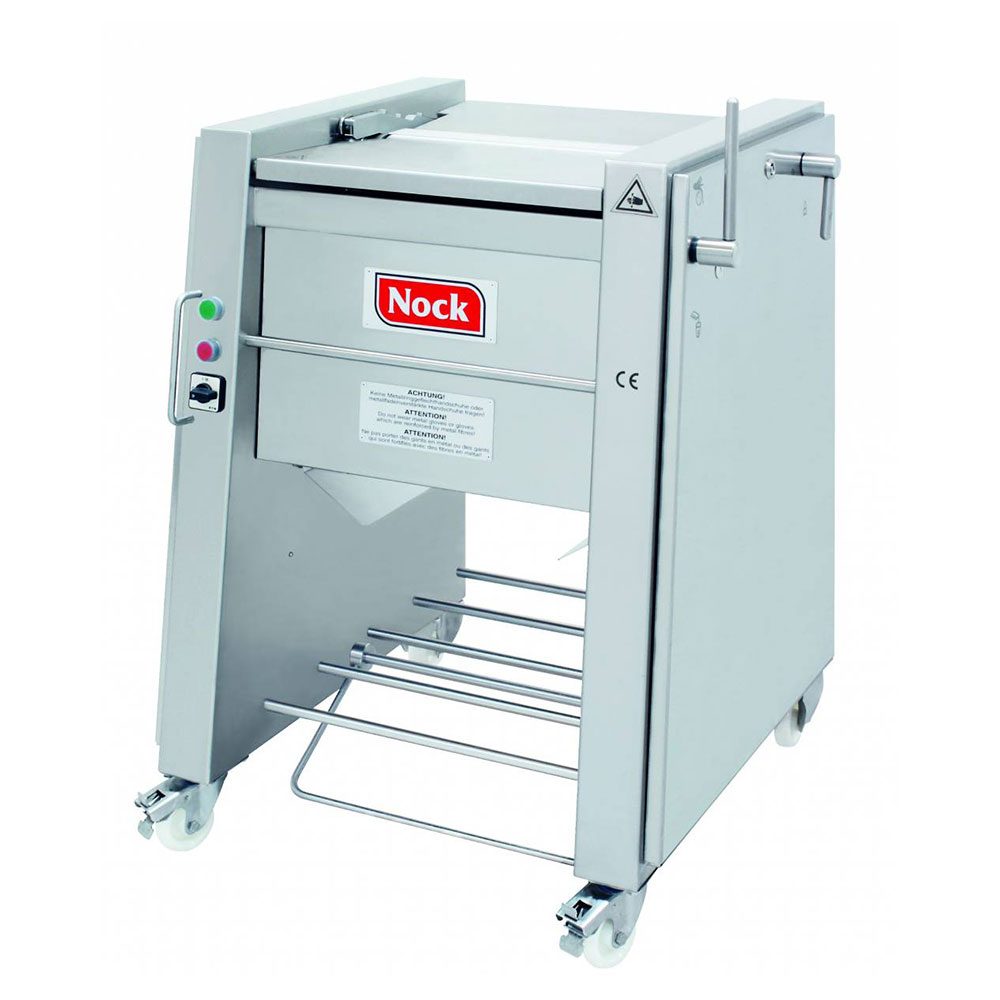

NOCK SKINEX S 460 FISH SKINNER

Open Top fish skinner with S technology and special application for low-loss fish skinning with thin skin.

FEATURES AND APPLICATION RANGE

cutting width: 430 mm
cutting speed: 32 m/min
features:
  • open top fish skinning machine with S technology
  • 3 methods of skinning:
    – thin skinning (shallow skinning) with sharp blade
    – pulling-off the skin with blunt blade (silver skinning)
    – restricted: deep skinning with sharp blade
application:
  • special application for low-loss skinning of fish with thin skin, e.g. tilapia, pangasius (basa), trout, cod, catfish, squid etc.
  • skinning of flat fish e.g. plaice, sole

STANDARD EQUIPMENT

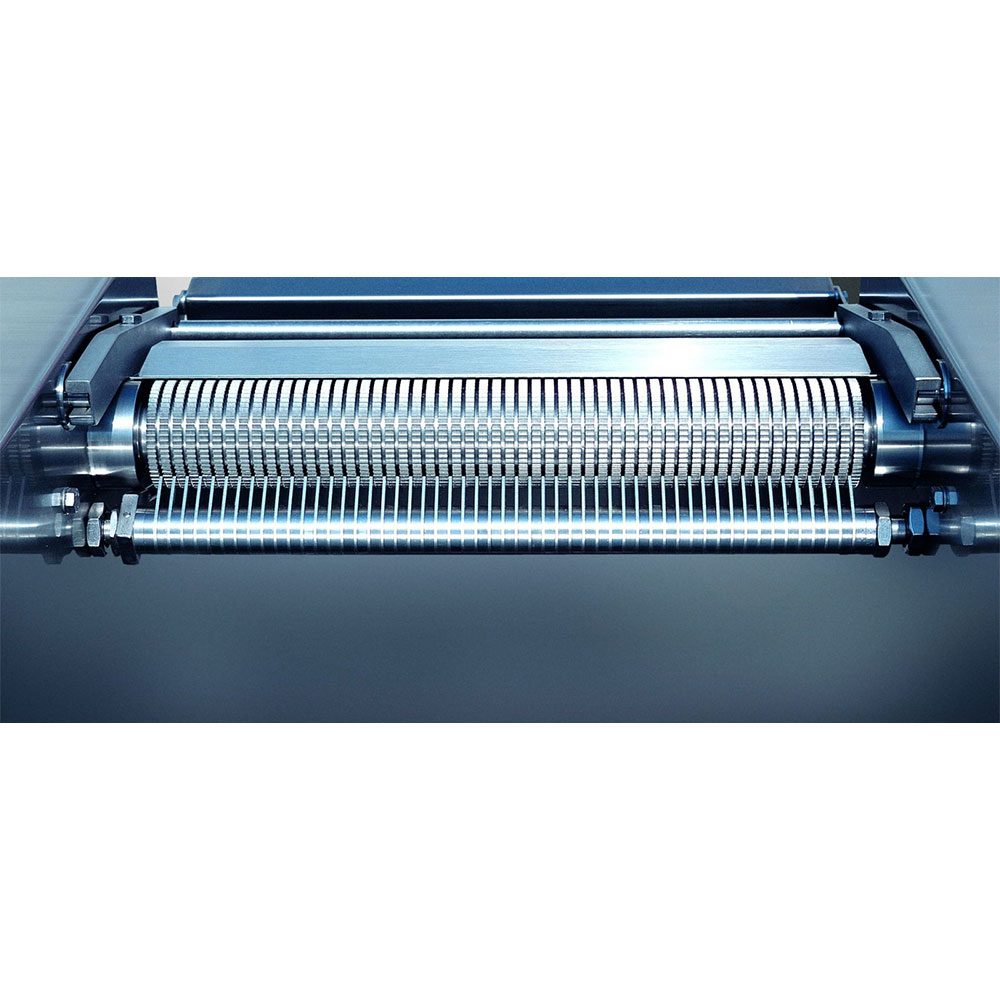

  • transport roller (AISI 316L) without peripheral grooves, with dynamic cleaning roller made of stainless steel (S technology)
  • water cleaning unit for steady continuous operation
  • blade gap infinitely adjustable

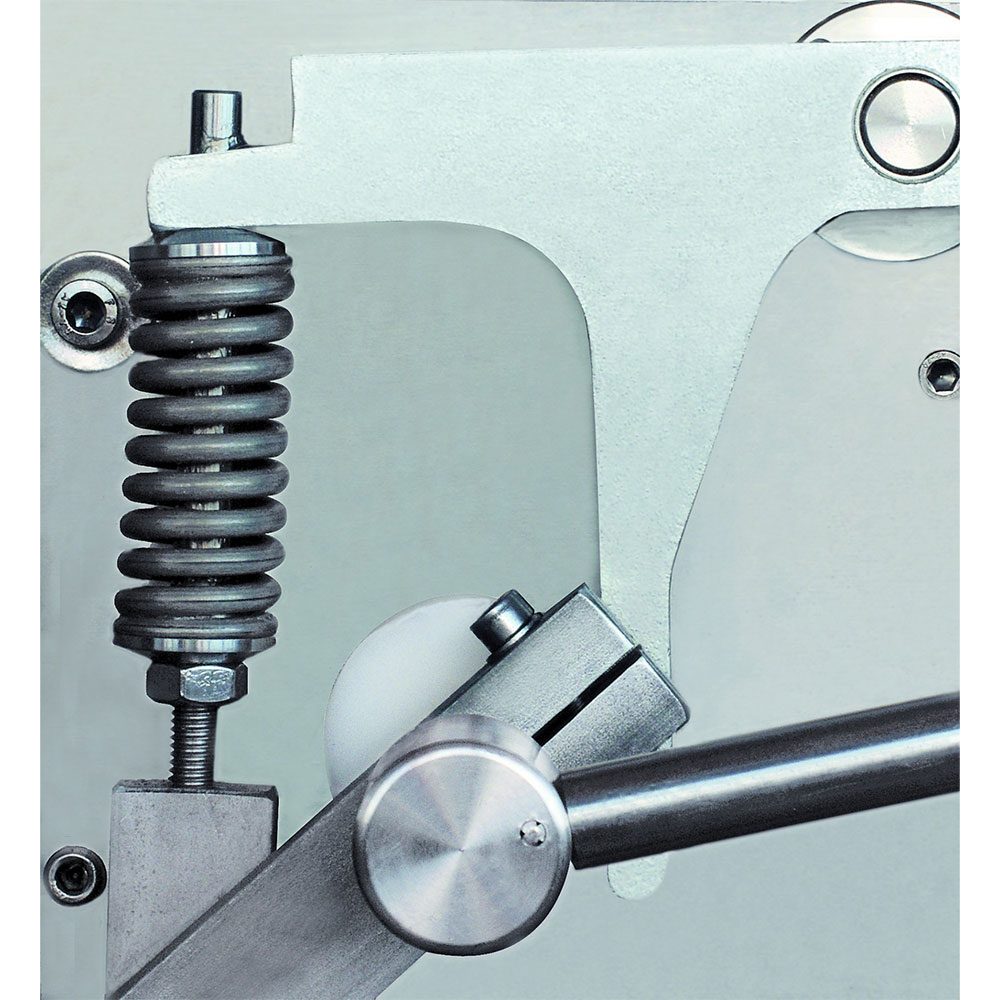

  • spring suspended blade holder for perfect skinning results
  • ergonomic favourable foot switch bar, adjustable in height
  • NOCK POWER PLATES® for a machine construction which is easy to clean, for outstanding
  • lockable castors
  • stainless steel

OPTIONS

TECHNICAL DATA

Skinex S 460
cutting width 430 mm
cutting speed 32 m/min
blade gap 0 – 0.5 mm infinitely adjustable
overall dimension W x H x D 750 x 960 x 750 mm
weight 160 kg
motor performance 0.75 kW
electrical connection 3 AC – 400 V – 50 Hz
IEC 60309 16 A 6h
other voltages upon request
water connection G 1/4 internal thread
water consumption approx. 100 l/h
compressed air not required

SKU: NOCK6-OTF Categories: , ,

Description

NOCK CORTEX CF 460 FISH SKINNER – NOCK6-OTF
